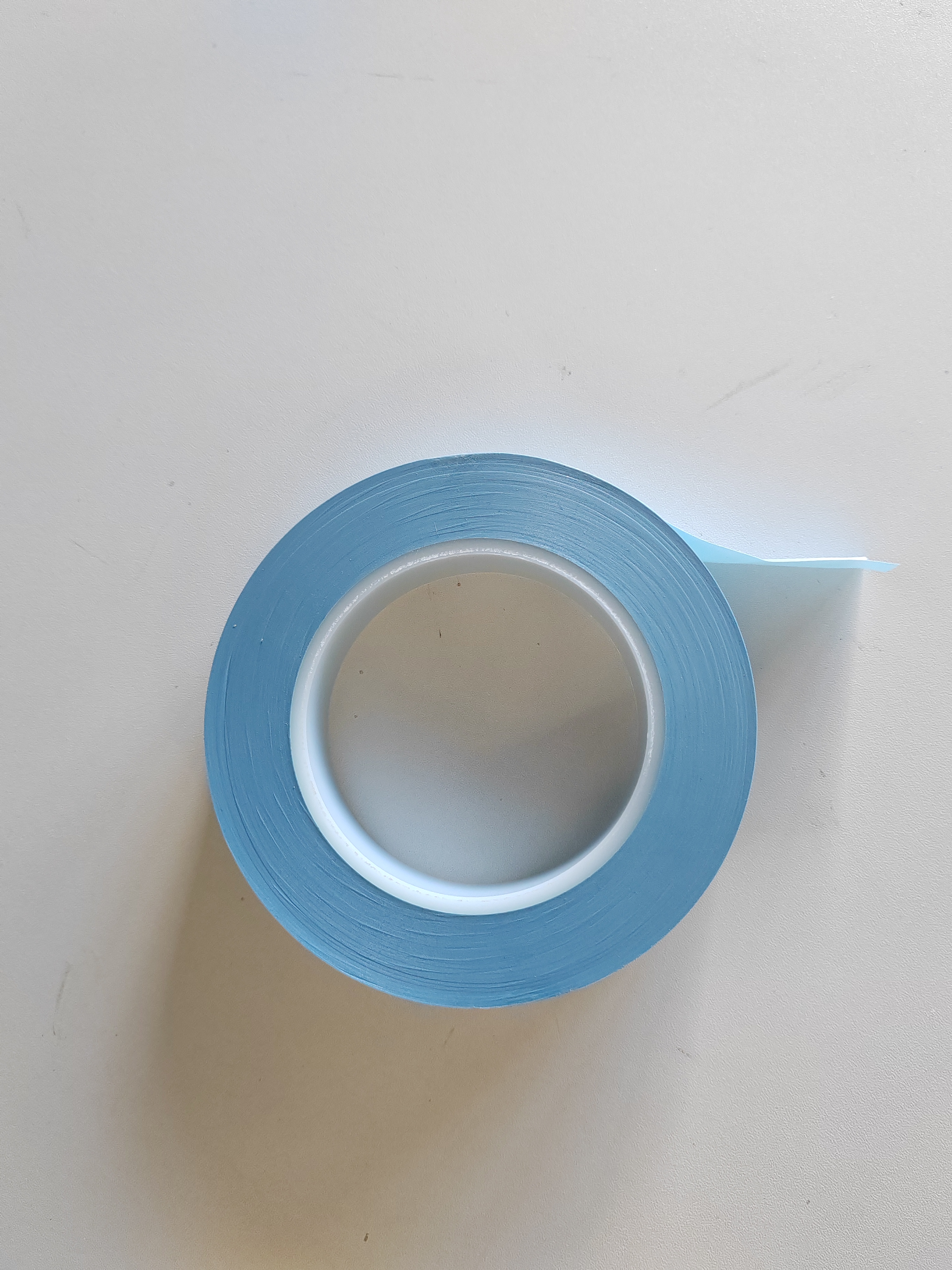

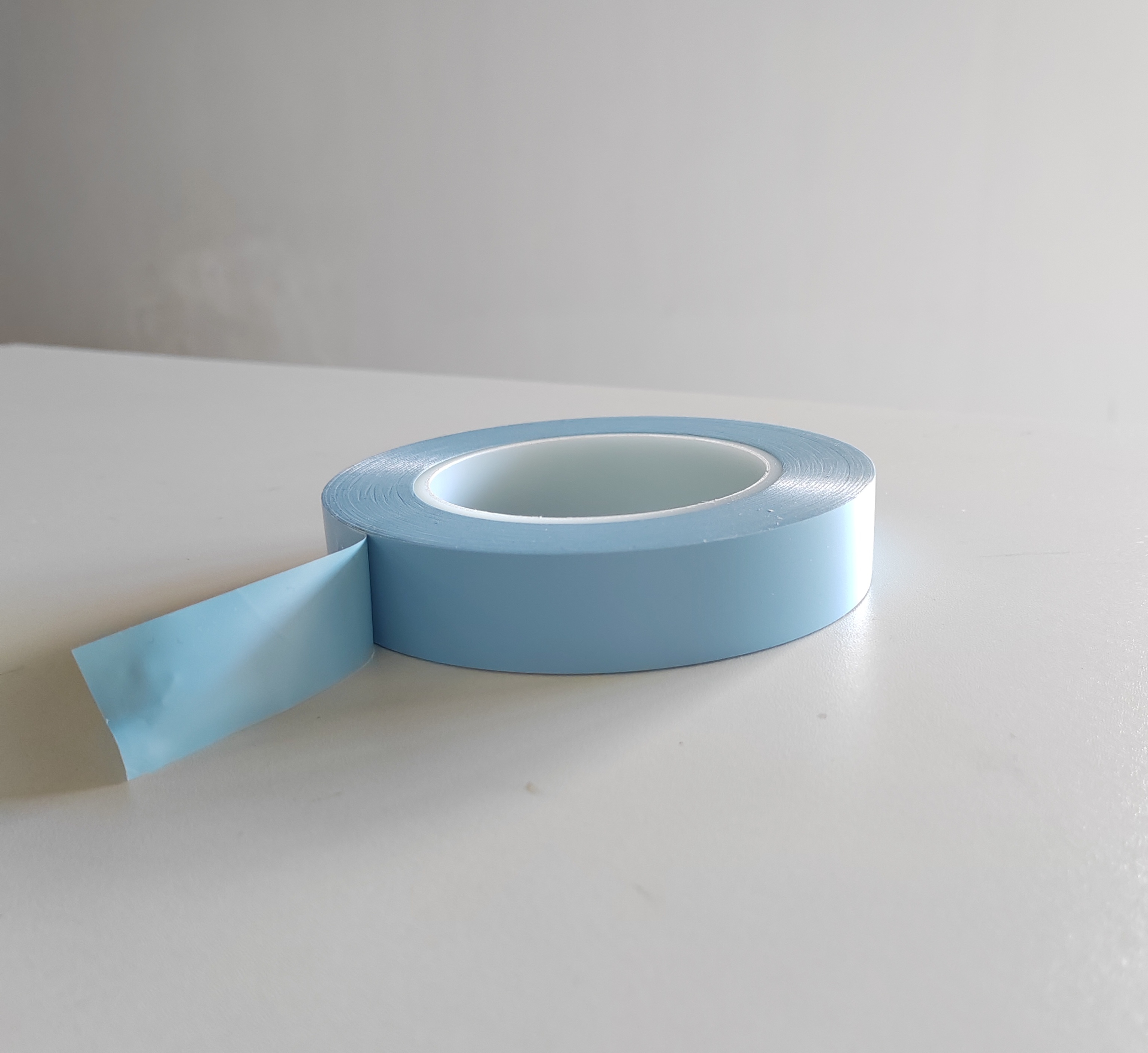

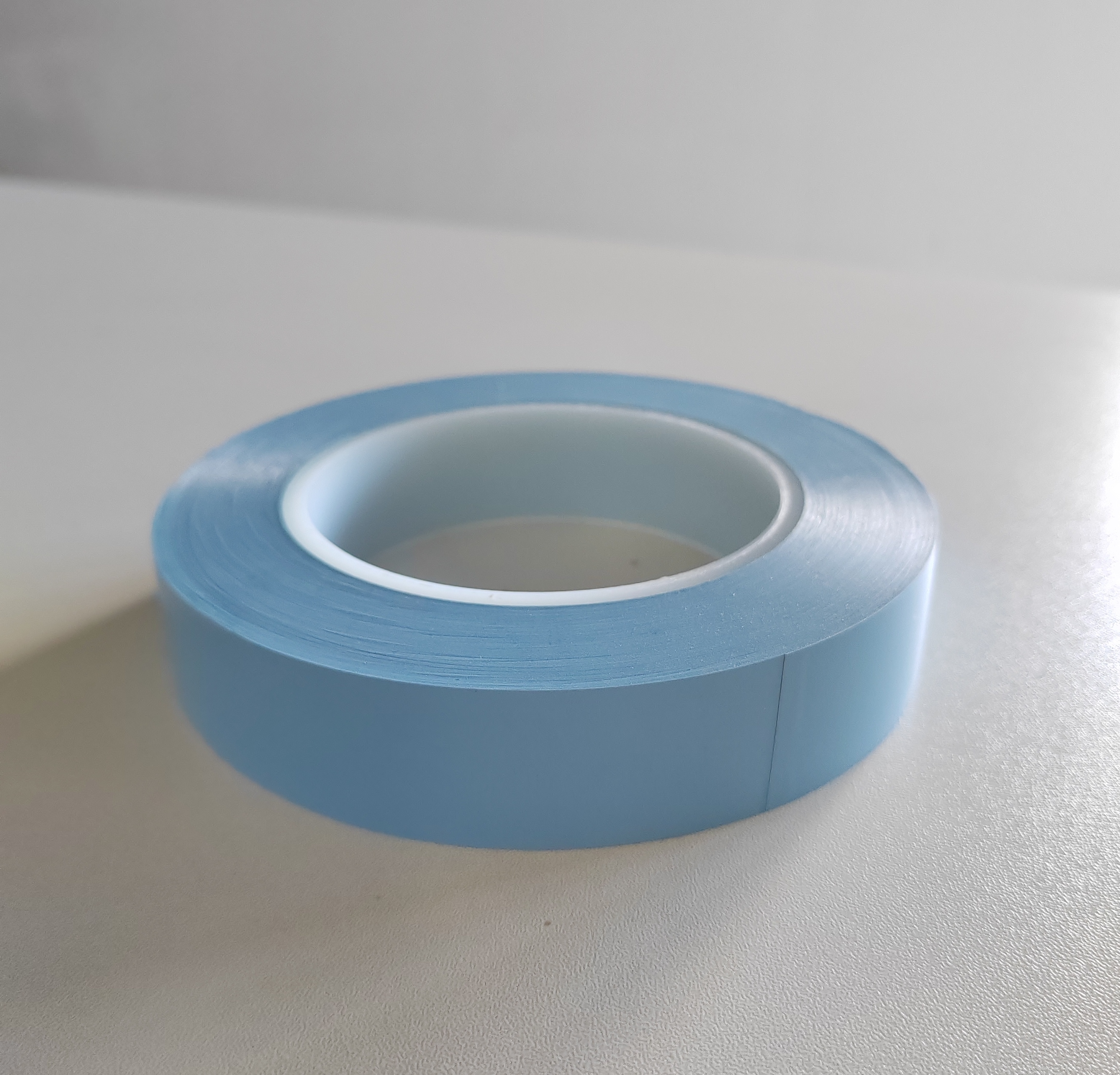

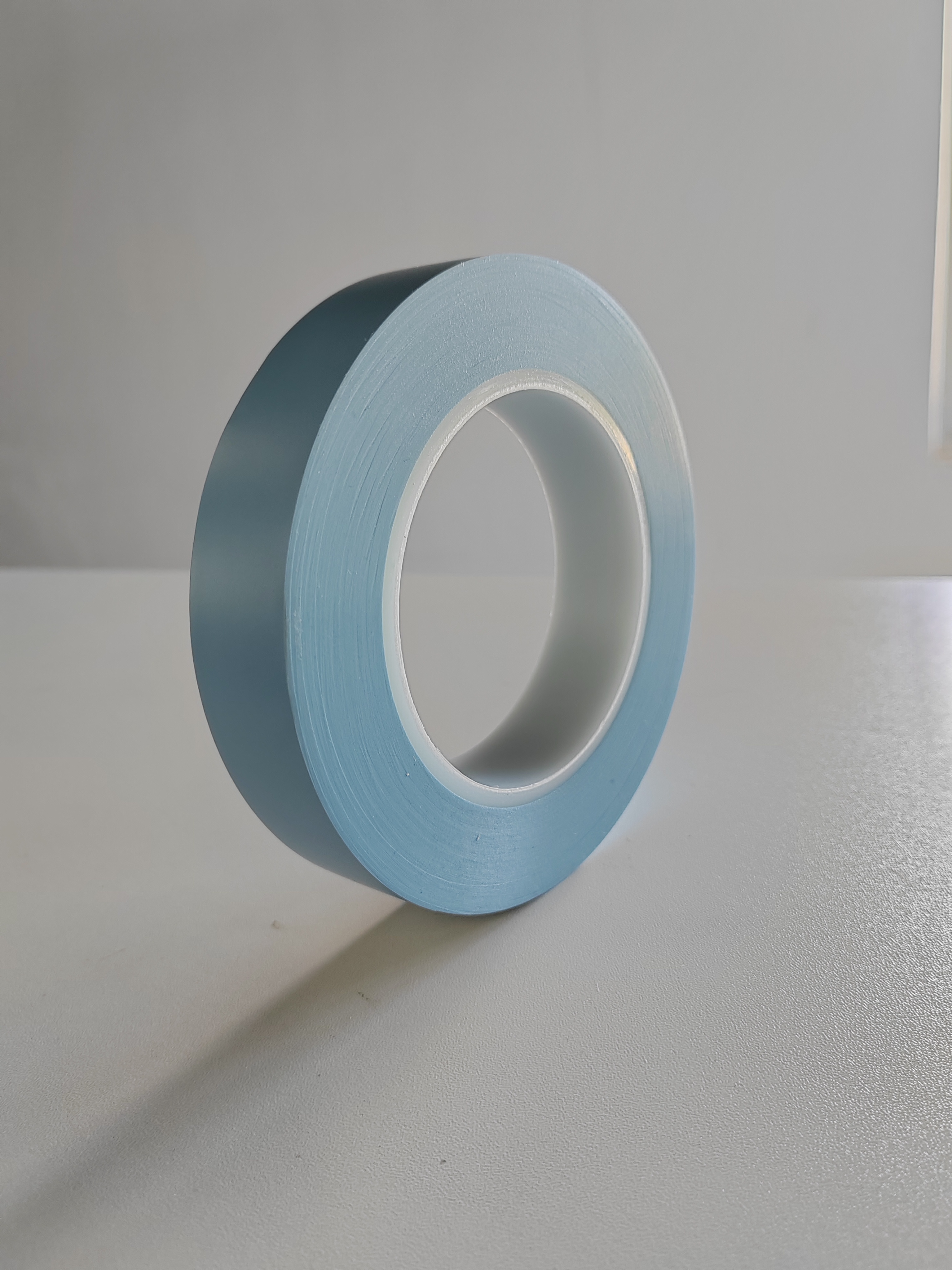

  • Nichiban 535A Analogue PVC Fine Line Masking Tape for Auto Painting Process

    Short Description:



    Our high temperature PVC Fine Line Masking Tape is equivalent to Nichiban 535A, 3M 4737,  Tesa 4174, Tesa 4244, which is specially design for broad curves and straight lines color separation on automotive painting and two-tone car body masking. It uses flexible and durable polyvinyl chloride PVC film as carrier and coated with natural rubber adhesive. The tapes has excellent features with high temperature resistance, which is up to 180ºC for 1hour, and can be easily to peel off without leaving residues on the body. It also has very strong peel adhesion and good conformity to adhere on both smooth or uneven surfaces to provide excellent color line separation and masking in high-temperature auto painting processes.

    The temperature it resists is upper than the 4174 PVC Fine Line Tape we are manufacuring as well.


    Product Detail

    Product Tags

    Nichiban 535A Analogue PVC Fine Line Masking Tape for Auto Painting Process

    Items Value
    Backing carrier Flexible PVC film
    Color Blue
    Adhesive tape Rubber
    Model GBS-535A
    Total thickness (mm) 0.12mm±10%
    Adhesion (KG/25mm) 0.35-0.5KG/25mm
    Tensile strength (KG/10mm) ≥2.4Kg/10mm
    Elongation (%) ≥150%
    Ageing resistance The adhesive tape was pasted on the mirror-surface steel for 24 hours at 72℃, peel off easily without any residue to the surface.
    Chemical resistance The tape sample was soaked in PH=3 or PH9 acid-base solution at room temperature for 48 hours, the tape substrate did not change and the rubber surface was still sticky.
    Temperature resistance The adhesive tape was pasted on the mirror-surface steel for 60mins at 180℃, peel off without any residue to the surface.



    Features

    1. Excellent masking performance on painted and non-painted substrates

    2. No ghosting or residues until 180°C/1h

    3. Good conformability with multidimensional surfaces

    4. Edge does not lift off and residue-free removal

    5. Strong and Flexible PVC film backing holds up to pull force, removes in one piece

    6. Natural rubber adhesive allows to peel off easily without any residue to the surface

    7. Durable, chemical resistance and aging resistance

    8. Speeds the paint time--no need to remove or clean auto body moldings

    9. Excellent for broad curves and straight lines, to create a smooth continuous paint line

    10. Outstanding fine line color separation

    11. Smooth trimmed edges create a continuous straight paint lin

    12. Equivalent to Nichiban 535A, 3M 4737 and Tesa 4174, Tesa 4244



    Application:

    • Masking of painted and non-painted substrates (e.g. automotive plastic parts) that require sharp and flat paint edges

    • Two-tone car body masking

    • Industrial paint masking for specialty vehicle, automotive, rail, marine and aerospace paint jobs
    • Paint masking for automotive fascia
    • Paint masking for high temperature paint processes
    • Paint masking for custom, two-tone and multiple color applications
    • Paint masking for bumper,sharp edge, curves lines and door trim of the automotive
