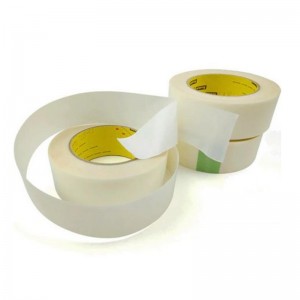

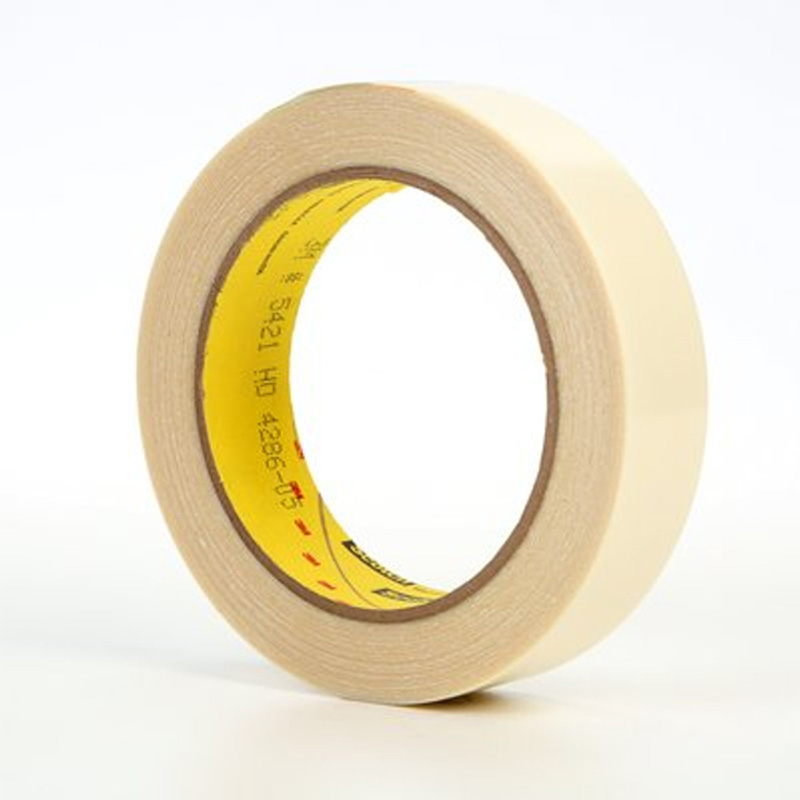

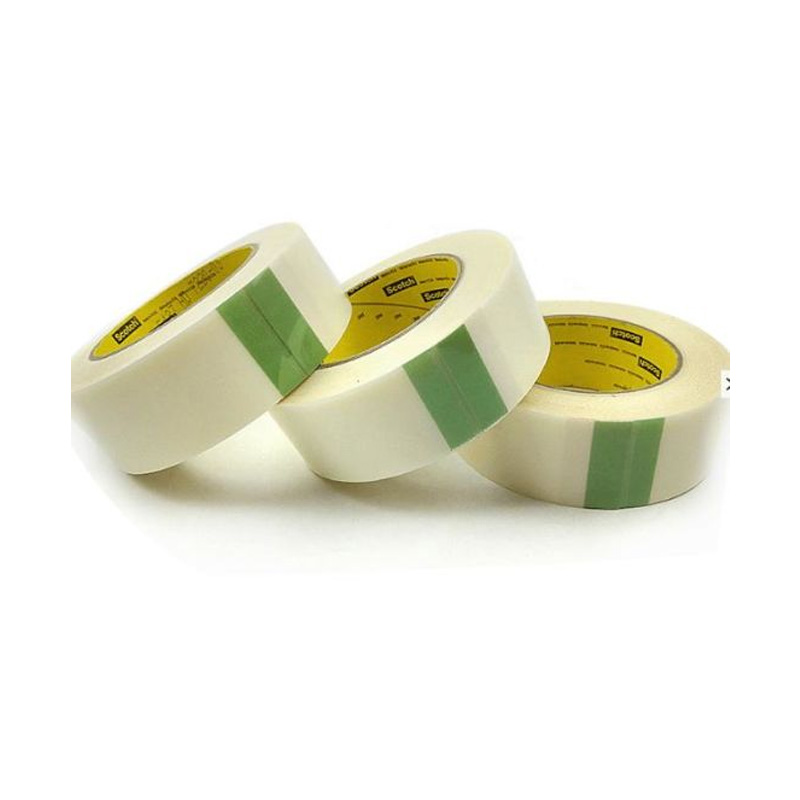

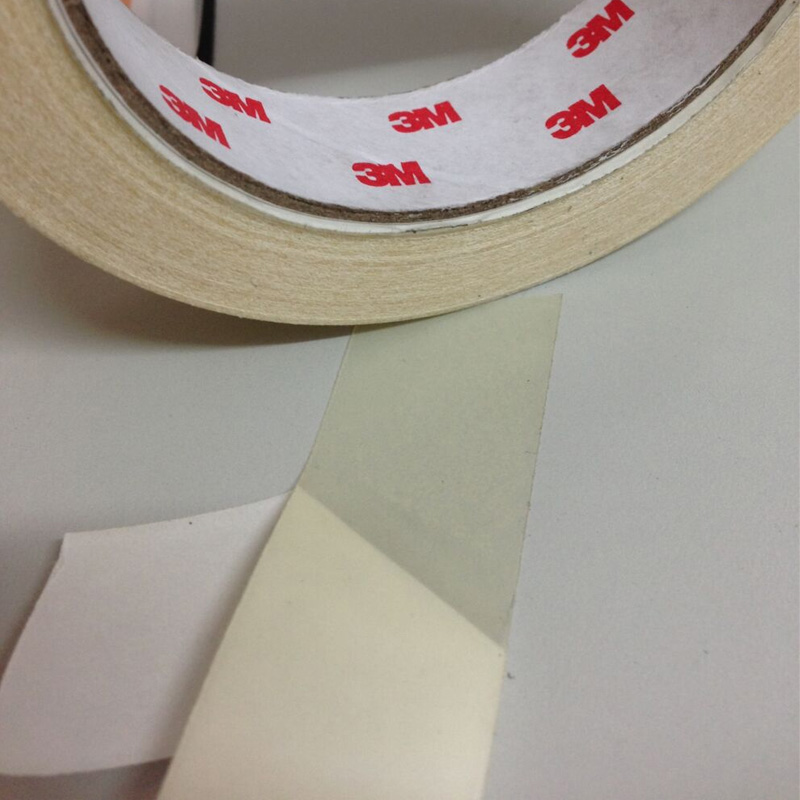

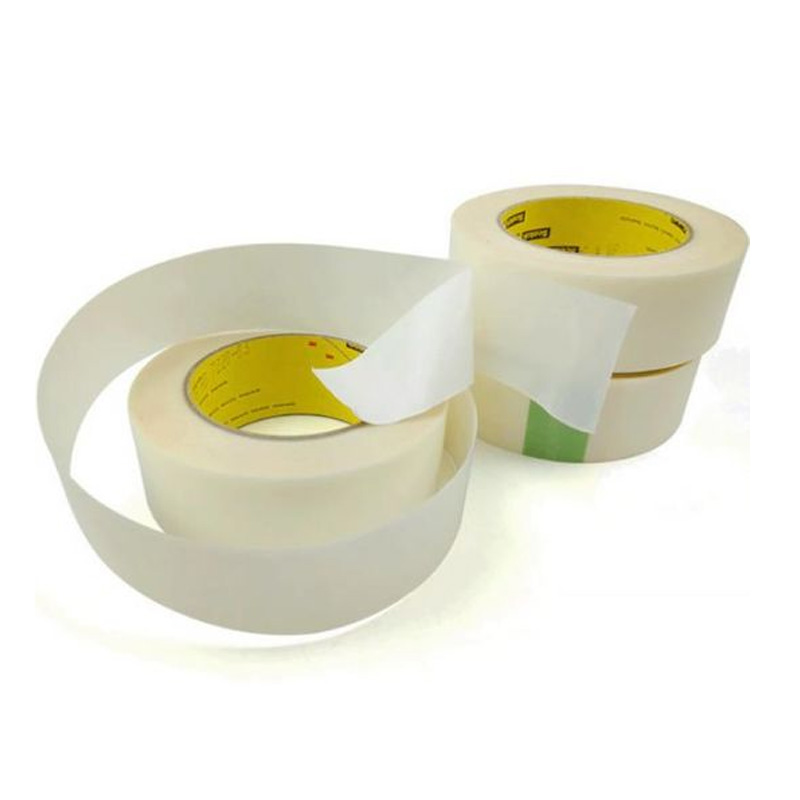

    High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting

    High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting Featured Image
    • High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting
    • High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting
    • High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting
    • High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting
    • High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting

    Short Description:

        The 3M UHMW 5421 polyethylene tape is used to protect the surface from abrasion and is a thin universal polyethylene caliper tape that creates a “slipping surface” effect so that contact surface doesn’t get worn out. The effectiveness of 3M 5421 UHMW-PE film tape mainly lies in its Ultra-High Molecular Weight Polyethylene (UHMW-PE) backing, which significantly reduces friction to create an effective solution for anti-stick and easy-release requirements. The tape has a unique combination of properties that makes it ideal for many heavy impact or sliding applications. 3M UHMW-PE Film Tape 5421 is a thinner version of 3M UHMW-PE Film Tape 5423.


    Download as PDF

    Product Detail

    Product Tags

    High Abrasion Resistant 3M 5421 UHMW Film Tape for Surfaces Protecting

    Features

    1. Abrasion resistant and chemical resistance

    2. Low coefficient of friction for “slip plane” effect between surfaces

    3. Reduce squeaks, rattles and other noises

    4. Good initial tack for immediate bonding to material surface

    5. Transparent color, silicone treated paper liner or densified kraft liner for option

    0.17mm thickness with 610mmx33meter

    6. Good combination of flexibility

    7. Available to laminated and die cut into any shape design as per drawings

    DataSheet

    Adhesion Strength 28 N/100mm
    Adhesive Type Rubber
    Application Reducing Wear Mechanical Equipment
    Backing (Carrier) Material Polyethylene
    Elongation at Break 440%,4.7
    Maximum Operating Temperature  107 ℃/225 ℉
    Minimum Operating Temperature -34 ℃/-30 ℉
    Overall Length (Metric) 16.5 m, 16.45 m, 32.91 m, 164.59 m
    Overall Width (Metric) 51 mm, 25.4 mm, 609.6 mm,508 mm, 127 mm
    Primary Liner 60# Densified Kraft, Silicone Treated Paper
    Product Color Transparent
    Shelf Life in Months (From Date of Manufacture) 18
    Tensile Strength (Metric) 796 N/100mm, 526 N/100mm
    Total Tape Thickness without Liner (Metric) 0.17 mm

    Wide Application

    3M UHMW-PE 5421 Film Tape is often used in general industrial applications to help control grates and rattles caused by vibration or coating of metal and plastic materials. This UHMW-PE (Ultra High Molecular Weight Polyethylene) film provides good chemical resistance and excellent abrasion resistance, which helps to provide a long service life. 3M UHMW-PE 5421 paper tape is mounted on a support, which facilitates punching to meet the requirements of specific applications. It's ideal for applications that require low friction and movement of parts and/or materials. This slick surface tape is mainly used in aerospace, automotive, printing and MRO industries.



    Served Industries

    *Conveyor guide rails and chutes

    *Spray booth liners

    *Tank and bin liners

    *Drawer and cabinet slides

    *Protecting aluminum sheets on stretch forming presses
