  • Copper Clad Polyimide Film Single Side FCCL Sheet don Majalisar FPC

    Takaitaccen Bayani:

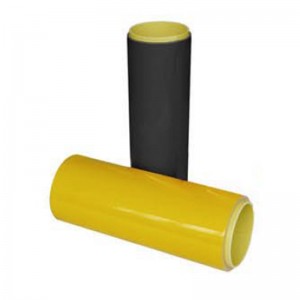

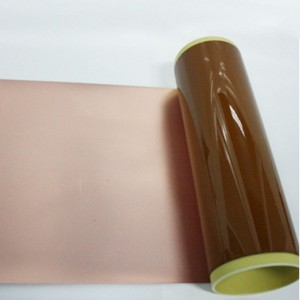

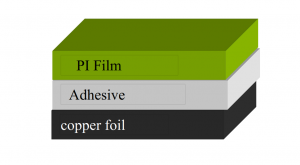

    Copper Clad Polyimide Filmyana amfani da fim ɗin amber ko baƙar fata polyimide azaman fim ɗin tushe kuma an yi shi da tef ɗin tagulla.Yawancin lokaci ana amfani da shi tare da fim ɗin murfin thermosetting akan masana'antar allon da'irori masu sassauƙa, yana nuna kyakkyawan juriyar zafin jiki da aikin rufewa.The soldering juriya zafin jiki ne 288 ℃ ba tare da kumfa da delamination.Muna da cikakkun samfuran samfuran PI tushe FCCL da polyimide thermosetting coverlay da polyimide stiffener sheet, wanda zai iya samar da mafita na ƙwararru don taron hukumar FPC ko sauran juriya mai zafi da masana'antar masana'anta na lantarki.


    Cikakken Bayani

    Tags samfurin

    Siffofin:

    1. Kyakkyawan juriya mai ƙarfi

    2. Soldering juriya zafin jiki ne 288 ℃

    3. Kyakkyawan kwanciyar hankali sunadarai,

    4. Juriyar Radiation,

    5. Chemical ƙarfi juriya da anti-lalata

    6. Sauƙi don mutu-yanke a cikin kowane ƙirar ƙirar al'ada

    7. High class lantarki rufi

    8. Thermosetting m

    9. Ƙarshe mai laushi, babu kumfa da delamination

    polyimide fim

    FPC sassauƙan allon kewayawa yawanci ana haɗa shi da mannen thermosettingfimkumapolyimide stiffenerfarantin karfe.The thermosetting mfimis ba tare da danko yayin dam a yanayin zafi na al'ada, amma lokacin da zafin jiki ya tashi zuwa waniiyaka, zai canza zuwa wani yanki mai ƙarfi tare da danko mai ƙarfi.A wannan lokacin, FPC za ta tsaya a kanpolyimide stiffenerfarantin karfe.Babban aikin shine daidaitawaPI mai ƙarfi dacewa zuwa damamatsayi, da kuma amfani da lantarkisolderingbaƙin ƙarfe na 1 ~ 2 seconds zuwagyara damatsayi guda ɗayan.Bayan babban zafin jiki da babban latsawaing, duk samanzai kasancegaba daya bonding,sannanyin burodifim ɗin don warkar da m.

    Yanayin aiki na fim ɗin polyimide na jan karfe ko takardar stiffener na polyimide:

    1. Na farko band: zazzabi 120 ℃, high matsa lamba 20kg / cm², 1min;

    2. Na biyu band: zazzabi 140 ℃, high matsa lamba 30kg / cm², 80min;

    3. Na uku band: zazzabi 80 ℃, high matsa lamba 30kg / cm², 5min;



    Aikace-aikace:

    Majalisar gudanarwar FPC

    PCB Board masana'anta

    Coverlay ko Stiffener a cikin F-PCB.

    Mota kewaye allon taro

    Transformer da Insulation.
