    Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems

    Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems Featured Image
    • Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems
    • Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems
    • Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems
    • Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems

    Short Description:



    Flexible Sintered Ferrite Sheets is a kind of excellent sheet materials used in 13.56 MHz communication magnetic field around antenna for anti metal, and it provides high permeability and low losses. The flexible ferrite sheets feature easy-to-apply adhesive mounting tape. It is ideal for improving the efficiency of wireless power transfer (Qi-WPC, PMA, A4WP, WCT), improving the performance of NFC and RFID communication systems. Additional applications include EMI suppression and magnetic shielding.

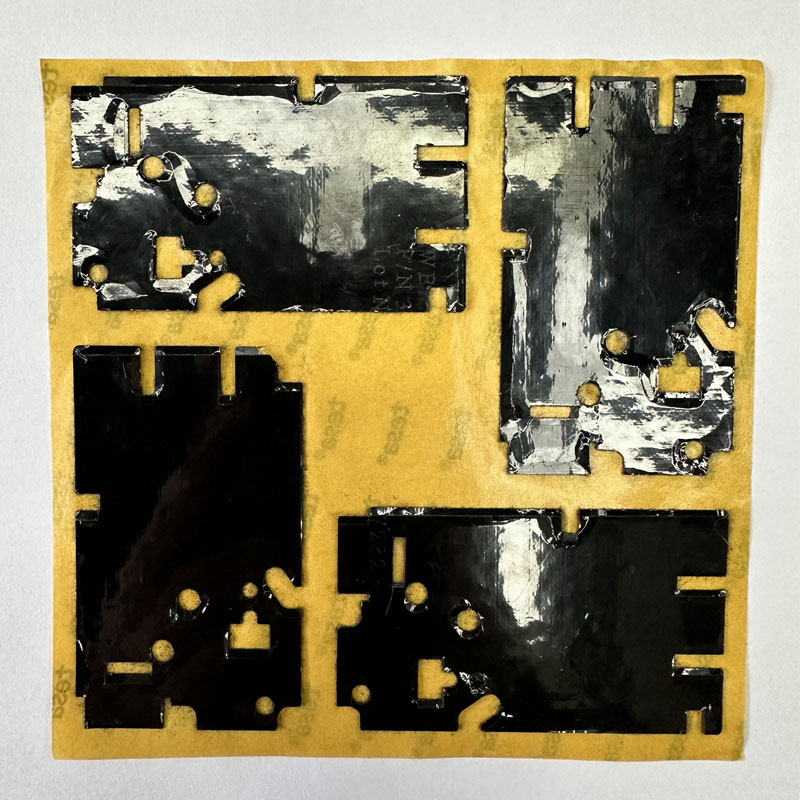

    OEM die cutting service provided as per customers’ requests.


    Download as PDF

    Product Detail

    Product Tags

    Flexible Sintered Ferrite Sheets for NFC and RFID Communication Systems

    Thickness 0.05mm-0.3mm
    Complex Permeability(卩) @13.56MHz, 0.1V
    Complex Permeability(卩”) @13.56MHz, 0.1V
    Color Black
    Adhesive Thickness 0.05mm
    Operating Temperature -40 up to +85°C
    Size Custom



    Features

    1. Flexible ferrite sheets with adhesive

    2. Made with thin, high-permeability sintered ferrite with PET film and adhesive tape

    3. Operating temperature -40°C to 85°C or 120°C

    4. High permeability

    5. Low losses at communication frequency

    6. Easy-to-apply adhesive mounting tape



    Served Industries:

    1. Improves performance of NFC and RFID communication systems

    2. RFID read / write device / RFID tags for 13.56MHZ NFC mobile phone antenna and RFID equipment / label

    3. Improves the efficiency of wireless power transfer (Qi-WPC, PMA, A4WP, WCT)

    4. EMI suppression

    5. Increases antenna magnetic field strength, effectively improve communication distance induction
