  • 3M Acrylic Plus Tape PT1100 PT1000 PT1500 for Automotive Exterior Attachment

    Short Description:

    The 3M PT1000 Acrylic Foam Tape Series are made from a black acrylic foam then coated with formulated acrylic adhesives for high adhesive build rates, particularly suitable for attaching automotive components. It features two adhesives, and non liner side adhesive desigin with special properties produce a high adhesion on some tough surfaces.

    • 3M Acrylic Foam Adhesive Tapes can compensate stress due to their unique viscoelasticity. In contrast to foam adhesive tapes (PE, PU adhesive tapes), they can cope with significant elongation differences between substrates in case of temperature changes.

    • Easy to use: The tape can be easily processed in multiple ways to cut and to apply.

    • Immediate initial adhesion: The initial adhesion allows immediate further processing without temporary support or fixtures.

    • Freedom of design: enables the easy differentiation of vehicle models through modified trim attachments without change of the body configuration.

    • Sealing and damping properties: positive improvement of NVH properties.


    Product Detail

    Product Tags

    3M Acrylic Plus Tape PT1100 PT1000 PT1500 for Automotive Exterior Attachment

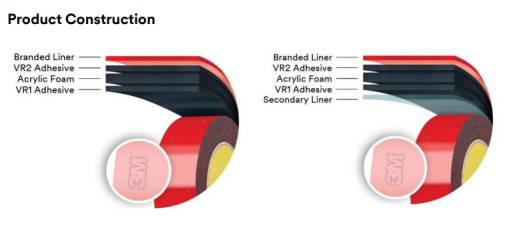

    1684477766552

    Features

    1. Temperature, weather, UV and solvent resistant.

    2. Outstanding adhesion to many automotive paints and MSE (Medium surface energy) plastics.

    3. Operating temperature up to 90°C.

    4. Optimized closed cell acrylic foam core for easy application and good adaptation to component surfaces.

    5. Suitable for all manual and automatic application processes.



    Item PT1100 PT1500 PT1100T
    Thickness Range 1.14 mm (0.045 in) +/- 0.13 mm (0.005 in) 1.52 mm (0.060 in) +/- 0.13 mm (0.005 in) 1.14 mm (0.045 in) +/- 0.13 mm (0.005 in)
    Density Range 545 kg/m3 (34 lb/ft3 ) +/- 80 kg/m3 (5 lb/ft3 ) 521 kg/m3 (32.5 lb/ft3 ) +/- 80 kg/m3 (5 lb/ft3 ) 1.14 mm (0.045 in) +/- 0.13 mm (0.005 in)

    Wide Application

    Automotive Exterior Attachment

    Antenna Housings

    Claddings

    Rocker Panels

    Fascia

    Roof Ditch Moldings

    Pillars

    Body Side Moldings

    Side Mirrors

    Sill Plates

    Step Pads

    Window Lace Moldings
