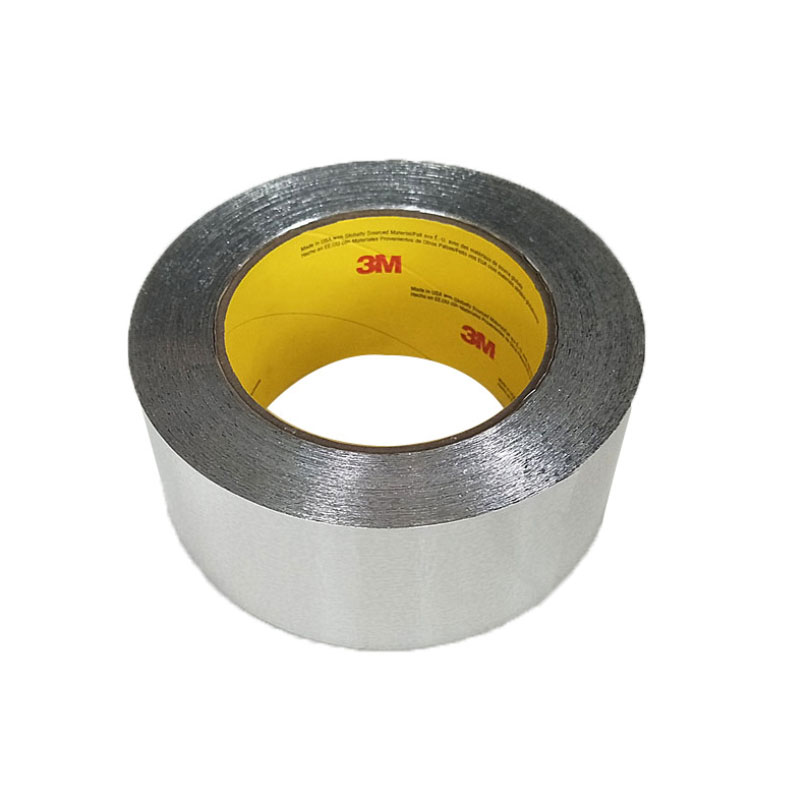

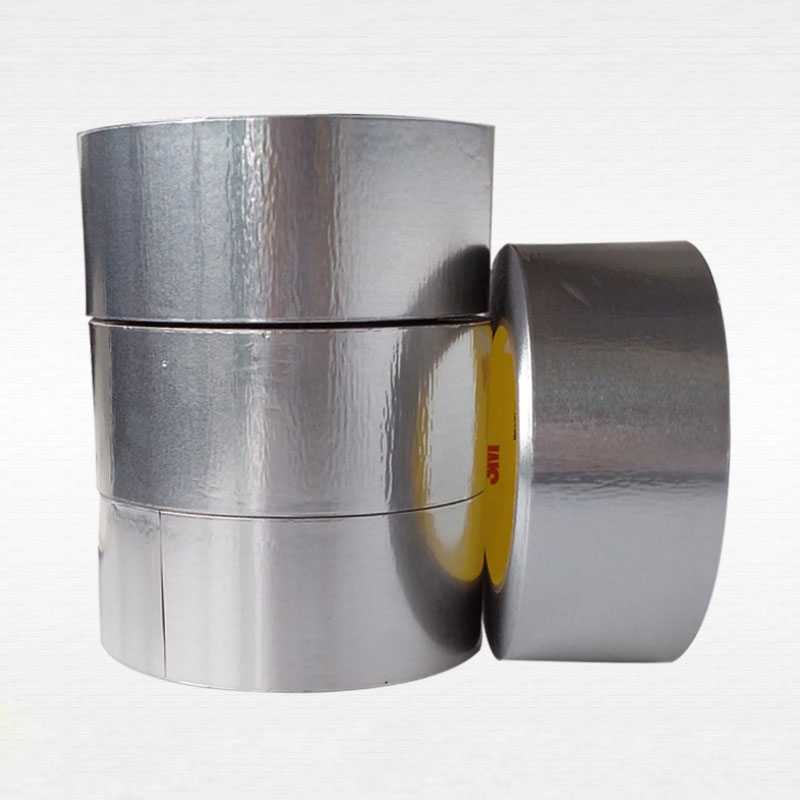

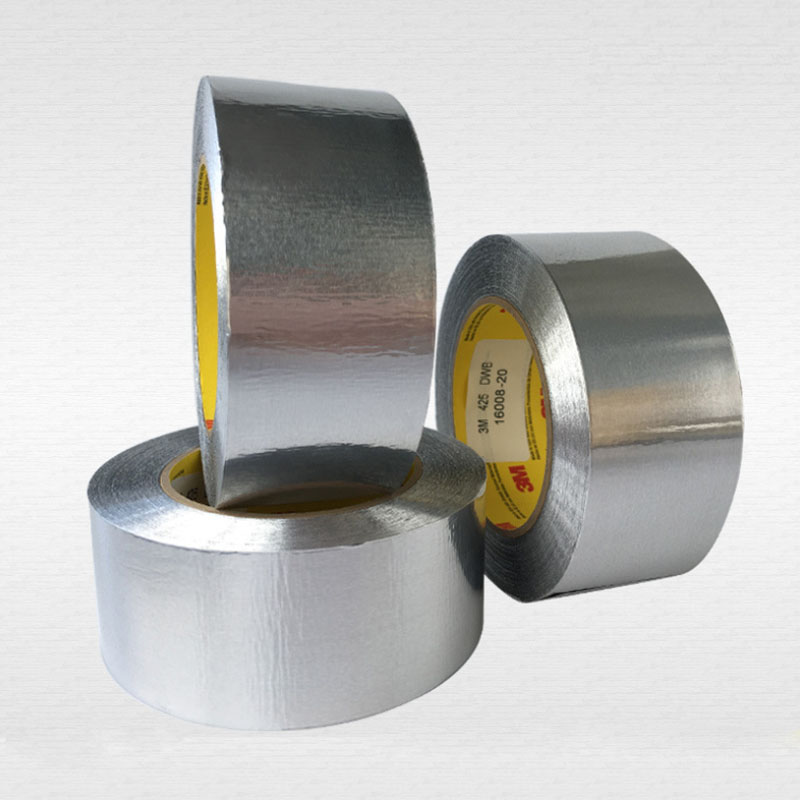

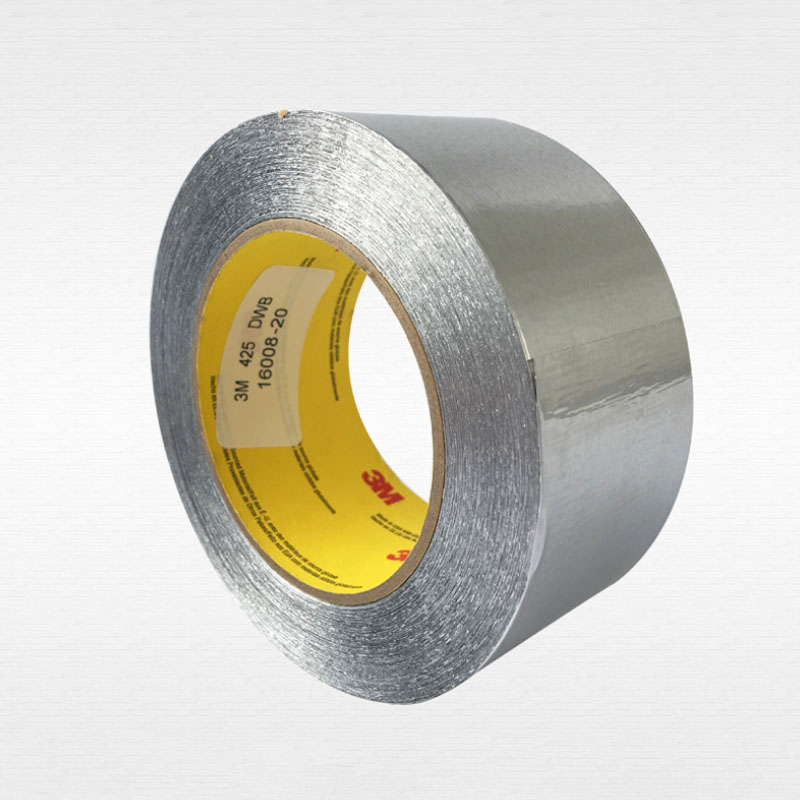

Thermally Conductive Tape 3M 425 Aluminum foil tape for Heat Shielding

Short Description:

3M 425 aluminum foil tape is a type of thermally conductive tape which uses dead soft aluminum foil as carrier and coated with high engineered acrylic adhesive. The soft aluminum foil conforms to cured and uneven surface, and the acrylic adhesive provides long term durability but removes cleanly after harsh masking application.

It has very excellent flame resistance (was recognized by UL746C and UL723), weather resistance, moisture and UV resistance, it also resist to chemicals to protect the surface during chemical masking operation.

3M 425 is ideally used as heat shielding, heat reflecting and chemical masking functions on various industry like Steam pipeline, Chemical pipeline, Refrigerator and freezer coil attachment, electronic EMI shielding, construction industry, Home appliance heat masking, etc,.

Send email to us Download as PDF

Product Detail

Product Tags

Features：

1. Dead soft aluminum foil with high engineered acrylic adhesive

2. Flame resistance with UL certificate

3. Weather resistance, Moisture resistance

4. Heat dissipation and chemical resistance

5. Good electrical conductivity

6. Excellent EMI shielding performance

7. Low moisture vapor transmission rate and waterproof

8. Flame resistant, heat and light reflectance

9. 1219mm*55meter

10. Available to die-cut in any custom shape design

Consisting of a dead soft, thermally conductive aluminum backing and high engineered acrylic adhesive, 3M 425 dissipates heat over the surface of the tape to reduce hot spots and protect the substrate from the effects of high temperature. The weather and chemical resistance, UV and moisture resistance enable the tape to applied on various industry like General purpose heat reflector and heat dissipater, heat masking for pipeline, chemical masking for chemical pipeline, EMI Shielding for electronic industry, anti moisture for home appliance, heat dissipation for construction industry, etc.

Below are some general industry :

General purpose heat reflector and heat dissipater

Electronic EMI Shielding

Cable/wire winding

Steam pipeline or chemical Pipeline masking

Home appliance&household moisture masking.

Refrigerator of factory main raw material

Mobile phones, computer magnetic shielding place

Construction industry

LCD TV monitor, portable computer, peripheral equipment, mobile phone, cable and other electronic products EMI shielding.
